BlueRFID HF

  • RFID reader and writer
  • ISO 15693 / ISO 14443-A (only ID reading)
  • TTL serial or USB interfaces
  • Embedded antenna
  • 3 LEDs + multitone beeper
MAN/MACHINE INTERFACES 3 LEDs for device operation signaling (*)
Multitone Beeper
INTERNAL DEVICES Frequency: 13.56 MHz
Power: 100 or 200 mW switchable
Standard: ISO15693, ISO 14443-A (only ID reading)
Read range: up to 10 cm (**)
Embedded antenna
INTERFACES Two-wire (TX and RX) asynchronous 3.3Vdc TTL serial or USB type A male
OS COMPATIBILITY Windows, OSX, Linux
I/O SIGNAL 1 digital input (optional with opendrain)
POWER SUPPLY USB powered, 220mA peak @ 5Vdc (RF active full power) 35mA @ 5Vdc (idle mode)
WORKING TEMPERATURE -20°C / 70°C
DIMENSIONS 5.7 cm x 5 cm
WEIGHT 20 g

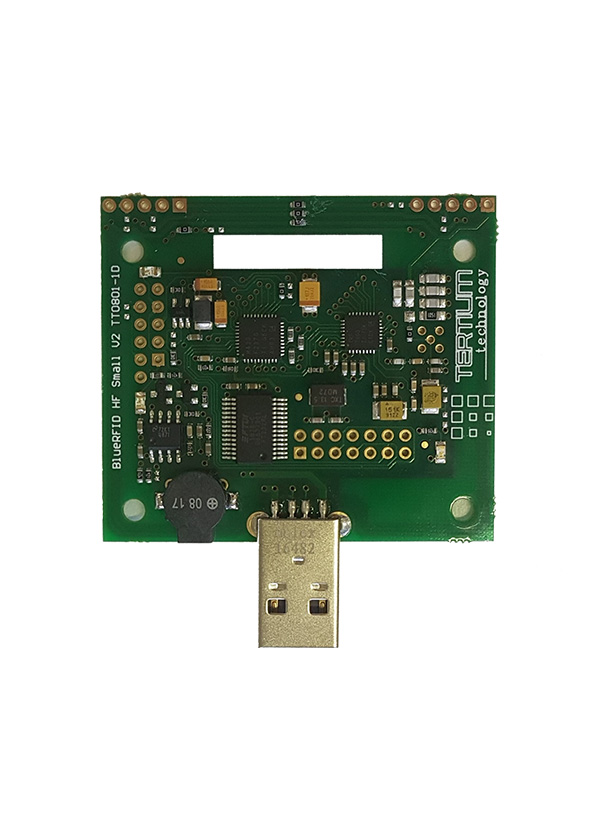

The BlueRFID HF electronic card is a desktop RFID reader, able to read and write HF tags and transmit the acquired data to any device with a USB interface.

The use of BlueRFID HF is easy and intuitive thanks to the automatic activation of the HF tag scanning (1) and to the presence of two LEDs and a multitone beeper, to alert the operator of the reading.

BlueRFID HF is powered via the USB interface, the same interface used to communicate with the main desktop or portable devices equipped with the Windows, Linux and Mac OS operating system. Data transmission takes place in virtual serial mode, a two-way channel. A simple serial communication protocol, present on all TERTIUM Technology products, allows to manage all the RFID reader functions, in particular the ID scan and the reading / writing of the HF tag memory (2).

BlueRFID HF is equipped with an integrated RFID antenna. At the specific request of the customer, the options of an external antenna connector and / or the TTL serial interface are available instead of the USB one.
