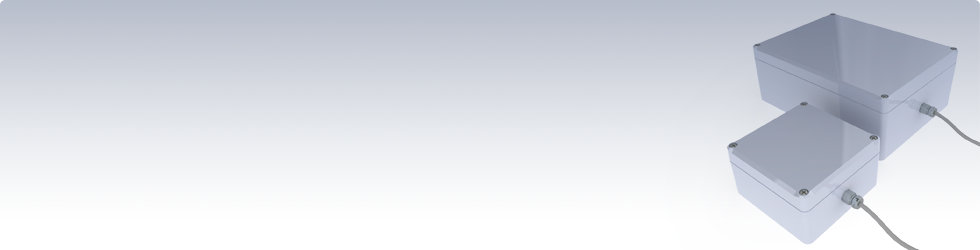

Long range RFID UHF desktop reader/writer
SmarAntenna
Home ⇒ Products
Desktop device with USB interface for long range
                     RFID UHF tag reading/writing
Products List

  • RFID Mobile Readers

    • BlueBerry HS UHF
    • BlueBerry HS HF
    • BlueBerry iS UHF
    • BlueBerry iS HF
  • RFID Desktop Readers

    • IceKey UHF
    • IceKey HF
    • SmartAntenna
  • RFID OEM Board

    • BlueRFID UHF
    • BlueRFID HF
  • Wireless Sensing

    • MWS Fleet Sensors
    • Geko
    • GasLogger
    • GreenSensing

Products directory

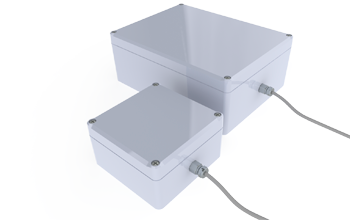

RFID SmartAntenna device

SmartAntenna is a long range RFID reader that is used to perform read/write operations on the major RFID UHF standard tags. The easy installation, the practical on-board man-machine interface with 3 coloured LEDs and a multitone beeper characterize this product. SmartAntenna has an embedded antenna with reading capacity of 400 cm (depending on the tag used).

Thanks to USB interface, SmartAntenna readers are able to convert devices such as PCs, Notebooks or embedded PCs in a real RFID communication platform. The SmartAntenna reader is equipped with appropriate drivers that make it compatible with the main operating systems (Windows XP, Windows Vista, Windows 7, Linux, Mac OS), allowing an easy and instant use of data exchanged with tags.

The single communication protocol, integrated in all TERTIUM Technology products, makes it easier to develop and project an application software able to manage all the functionalities of the devices. The configuration software, supplied with the product, allows to set the major functionalities as, for instance, the reading process that can be set to operate cyclically or manually governed from terminal.

The ABS case with IP54 protection degree guarantees a high level of robustness. These features make SmartAntenna highly functional for any application requiring an RFID control station.

Technical Characteristics

MAN/MACHINE INTERFACES 3 LEDs for device operation signaling
Speaker
INTERNAL DEVICES Frequency: 860 MHz ÷ 960 MHz
Power: configurable up to 200 mW
Standard: EPC Class1 Gen2
Reading distance: up to 4 m
Embedded antenna
INTERFACES USB type A female
OS COMPATIBILITY Windows, OSX, Linux
POWER SUPPLY USB powered, 480mA peak @ 5Vdc (RF active full power) 72mA @ 5Vdc (idle mode)
WORKING TEMPERATURE -20°C / 70°C
DIMENSIONS Width 20 cm – Height 15 cm – Depth 7.7 cm
PROTECTION DEGREE IP54
