IceKey UHF

  • RFID reader and writer
  • EPC Class1 Gen2
  • USB interface
  • Embedded antenna
  • 3 LEDs + multitone beeper
  • Proximity sensor
MAN/MACHINE INTERFACES 3 LEDs for device operation signaling
Multitone Beeper
Proximity Sensor
INTERNAL DEVICES Frequency: 860 MHz ÷ 960 MHz
Power: configurable up to 200 mW
Standard: EPC Class1 Gen2
Reading distance: up to 1.2 m (*)
Embedded antenna
INTERFACES USB type A female
OS COMPATIBILITY Windows, OSX, Linux
POWER SUPPLY USB powered, 480mA peak @ 5Vdc (RF active full power) 72mA @ 5Vdc (idle mode)
WORKING TEMPERATURE -20°C / 70°C
DIMENSIONS Width 11.7 cm – Height 8 cm – Depth 2.4 cm
WEIGHT 70 g
PROTECTION DEGREE IP54

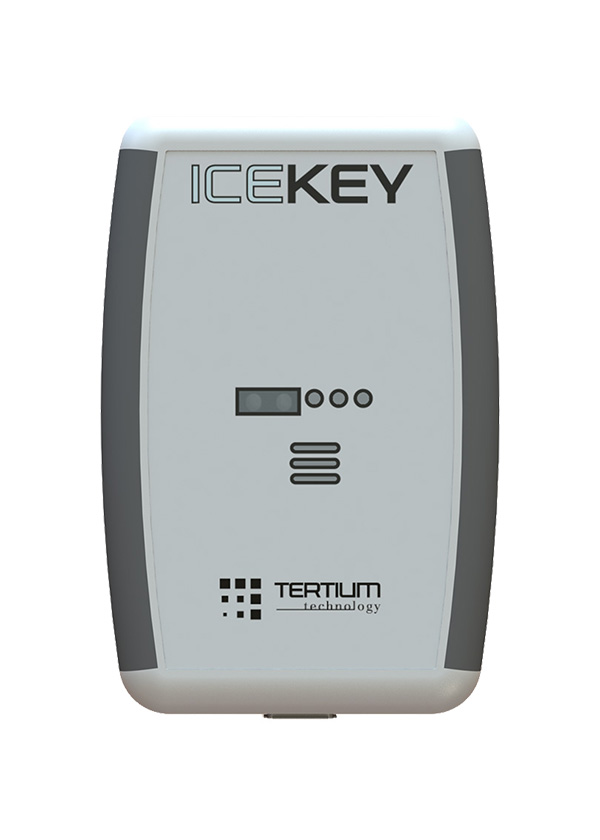

IceKey UHF is a desktop RFID reader, small in size, able to read and write UHF tags and transmit the acquired data to any device with a USB interface.

The maximum reading distance is 120 cm for UHF far field tags.

These performances are obtained using the antenna integrated in the RFID reader. Alternatively, using the UHF IceKey version equipped with the SMA RF connector, it is possible to connect an external antenna, with the aim of obtaining greater reading distances, or of being able to integrate the RFID reader in mechanically particular applications, or of being able to read near filed micro UHF tags.

The use of IceKey UHF is easy and intuitive thanks to the automatic activation of the UHF tag scanning (1) and to the presence of two LEDs and a multitone beeper, to alert the operator of the reading.

IceKey UHF is powered via the USB interface, the same interface used to communicate with the main desktop or portable devices equipped with the Windows, Linux and Mac OS operating system. Data transmission takes place in virtual serial mode, a two-way channel. A simple serial communication protocol, present on all TERTIUM Technology products, allows to manage all the RFID reader functions, in particular the ID scan and the reading / writing of the UHF tag memory (2).
