BLUEBERRY iS UHF

  • RFID reader and writer
  • EPC Class1 Gen2
  • USB interface – Bluetooth® 2.1+ EDR
  • iAP (bidirectional serial for Apple devices – LE UHF version recommended) and SPP (bidirectional serial) profiles
  • HID (keyboard emulation – optional) profile
  • Automatic reading of EPC or EPC + TID or other combinations
  • Output ASCII / HEX with prefix and suffix
  • Battery life up to 10000 readings
MAN/MACHINE INTERFACES 1 function key for RFID read activation, Multitone Beeper, 2 LED for device operation signaling
INTERNAL DEVICES RFID reader ETSI version:
Frequency: 865.6 – 867.6 MHz
Number of channels: single or 4 hopping channels
Channel occupanc in accordance with: ETSI EN 302 208-2 V1.4.1 and ETSI EN 300 328 V1.8.1
Power: configurable up to 50 mW
Standard: EPC Class1 Gen2
Reading distance: up to 30 cm with Far Field Tag, 2 cm with Near Field Tag
RFID reader FCC version:
Frequency: 902.55 – 927.7 MHz
Number of channels: 50 hopping channels (compliant to FCC part 15)
Channel occupancy in accordance with: FCC part 15
Power: configurable up to 50 mW
Standard: EPC Class1 Gen2
Reading distance: up to 30 cm with Far Field Tag, 2 cm with Near Field Tag
Embedded antenna
INTERFACES Micro USB type B
Bluetooth Class 2 V2.1+ EDR
OS COMPATIBILITY iOS, Android, RIM, Windows Mobile/Phone, Windows, macOS, Linux
PROCESSOR Texas Instruments MSP430 (16 bit RISC a 16MHz)
POWER SUPPLY USB powered: 380mA peak @ 5Vdc (RF active full power), 30mA @ 5Vdc (idle mode)
Battery powered: Li-Poly Battery 3.7 Vdc 300mAh, rechargeable via micro USB, battery life 10000 reading, 14 h in idle mode
WORKING TEMPERATURE -20°C / 60°C
DIMENSIONS Height 6.8 cm – Width 4.2 cm – Depth 1.8 cm
WEIGHT 30 g
PROTECTION DEGREE IP54

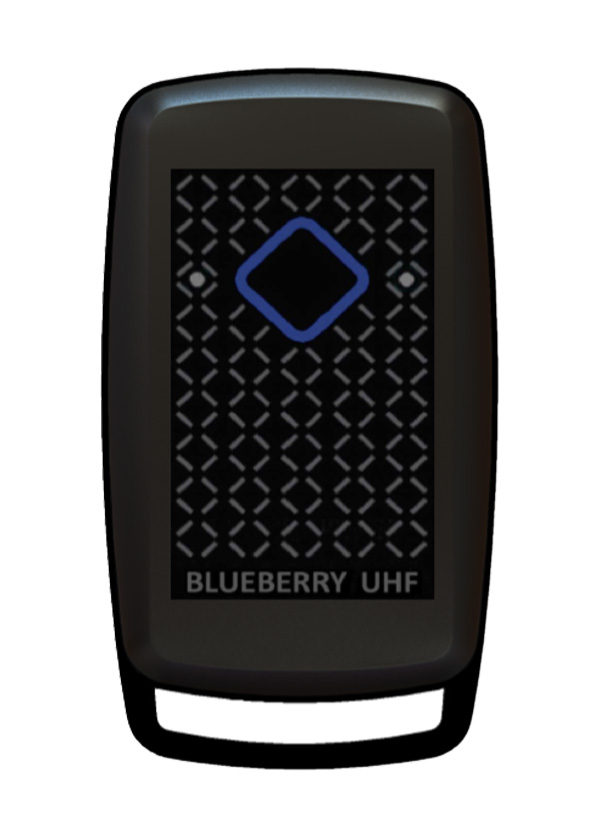

BlueBerry iS UHF is a mobile mini RFID reader, keychain shape, capable of reading UHF tags and transmitting the acquired data to any device equipped with a Bluetooth® radio interface.

The maximum reading distance of the device is 30 cm with far field tag and 2 cm with near field tag.

The use of the RFID reader is easy and intuitive thanks to the presence of a single button, to activate the reading of the UHF tags (1), and an LED and a multi-tone beeper, to alert the operator of the reading.

BlueBerry iS UHF integrates Bluetooth® radio technology, in particular it uses iAP and SPP profiles.

With the SPP profile, data transmission takes place in virtual serial mode, a two-way channel. A simple serial communication protocol, present on all TERTIUM Technology products, allows to manage all the RFID reader functions, in particular the ID scan and the reading / writing of the UHF tag memory (2). With this profile it is possible, in the development phase, to integrate RFID technology in any application or program for mobile devices or desktops or laptops.
The iAP profile is essentially the same as the SPP profile, with full compatibility with iPhone® and iPad® devices.
BlueBerry iS UHF is battery powered. Charging carries out via a micro USB connector.
Through the USB port it is possible to connect the BlueBerry iS UHF to a PC, so that it can also be used as a normal RFID desktop reader. Data transmission on the USB interface takes place in virtual serial mode, a bidirectional channel (managed through the same serial communication protocol as the Bluetooth® SPP interface).
